Flange Needle Instrument Valve
0572-8469225
The J48H type needle valve has good sealing performance, and is generally used for sealing the gas or liquid (such as steam and oil) medium with relatively small flow rate and high pressure. The needle valve type is generally divided into general stop valve, needle type globe valve, angle type needle valve, instrument needle type valve, bellows needle valve, valve group and so on. The needle type globe valve has good sealing performance and long service life. Even if the sealing surface is damaged, it only needs to replace the vulnerable parts, so that it can continue to use.
|
型号
|
公称压力(Mpa)
|
公称直径DN(mm)
|
尺寸(mm)
|
阀体材料
|
工作温度(℃)
|
适用介质
|
重量(kg)
|
|||
|

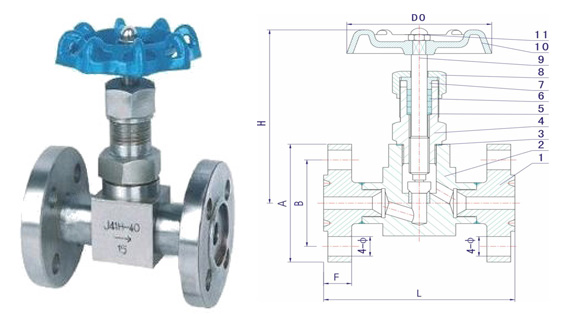

L
|
d
|
H
|
Do
|
|||||||
|
J48W-16P
|
1.6
|
10
|
118
|
8
|
100
|
80
|
1Cr18Ni9Ti
|
450
|
水，蒸汽，碱，酸
|
3.2
|
|
J48W-16P
|
1.6
|
15
|
118
|
10
|
130
|
100
|
1Cr18Ni9Ti
|
450
|
水，蒸汽，碱，酸
|
3.75
|
|
J48W-16P
|
1.6
|
20
|
128
|
14
|
150
|
140
|
1Cr18Ni9Ti
|
450
|
水，蒸汽，碱，酸
|
5.5
|
|
J48W-25P
|
2.5
|
10
|
118
|
8
|
100
|
80
|
1Cr18Ni9Ti
|
450
|
水，蒸汽，碱，酸
|
3.2
|
|
J48W-25P
|
2.5
|
15
|
118
|
10
|
130
|
100
|
1Cr18Ni9Ti
|
450
|
水，蒸汽
|
3.75
|
|
J48W-25P
|
2.5
|
20
|
128
|
14
|
150
|
140
|
1Cr18Ni9Ti
|
450
|
水，蒸汽
|
5.5
|
|
J48H-10
|
1.0
|
10
|
118
|
8
|
100
|
80
|
碳钢
|
425
|
水，蒸汽
|
3.2
|
|
J48H-10
|
1.0
|
15
|
118
|
10
|
130
|
100
|
碳钢
|
425
|
水，蒸汽
|
3.75
|
|
J48H-10
|
1.0
|
20
|
128
|
14
|
150
|
140
|
碳钢
|
425
|
水，蒸汽
|
5.5
|
