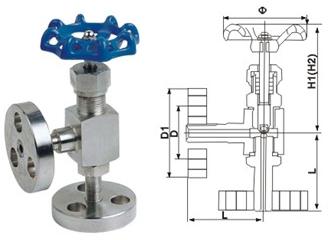

Flanged Angle Needle Instrument Valve
0572-8469225
|
型号 |
公称压力(Mpa) |
公称直径DN(mm) |
尺寸(mm) |
阀体材料 |
工作温度(℃) |
适用介质 |
重量(kg) |
|||
|
L |
d |
H |
Do |
|||||||
|
J48W-16P |
1.6 |
10 |
118 |
8 |
100 |
80 |
1Cr18Ni9Ti |
450 |
水，蒸汽，碱，酸 |
3.2 |
|
J48W-16P |
1.6 |
15 |
118 |
10 |
130 |
100 |
1Cr18Ni9Ti |
450 |
水，蒸汽，碱，酸 |
3.75 |
|
J48W-16P |
1.6 |
20 |
128 |
14 |
150 |
140 |
1Cr18Ni9Ti |
450 |
水，蒸汽，碱，酸 |
5.5 |
|
J48W-25P |
2.5 |
10 |
118 |
8 |
100 |
80 |
1Cr18Ni9Ti |
450 |
水，蒸汽，碱，酸 |
3.2 |
|
J48W-25P |
2.5 |
15 |
118 |
10 |
130 |
100 |
1Cr18Ni9Ti |
450 |
水，蒸汽 |
3.75 |
|
J48W-25P |
2.5 |
20 |
128 |
14 |
150 |
140 |
1Cr18Ni9Ti |
450 |
水，蒸汽 |
5.5 |
|
J48H-10 |
1.0 |
10 |
118 |
8 |
100 |
80 |
碳钢 |
425 |
水，蒸汽 |
3.2 |
|
J48H-10 |
1.0 |
15 |
118 |
10 |
130 |
100 |
碳钢 |
425 |
水，蒸汽 |
3.75 |
|
J48H-10 |
1.0 |
20 |
128 |
14 |
150 |
140 |
碳钢 |
425 |
水，蒸汽 |
5.5 |
