D73H hard seal butterfly valve
It can be used for industrial and environmental protection, water treatment, high rise buildings, water supply and drainage pipelines for food, medicine and chemical industry.
Adoption of standards
Design criteria: GB/T 12238-1989 method
The connecting dimensions of orchid are GB/T9113.1-2000; GB/T9113.2-2000; GB/T9115.1-2000; GB/T9115.2-2000;
Structure length: GB/T12221-1989
Pressure test: GB/T 13927-1992

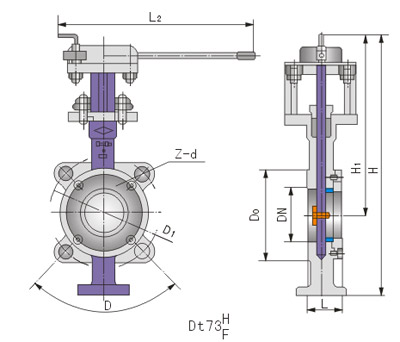

Dt73H/F | DN | 结构长度(标准值 | SIZE | 法兰尺寸和螺栓孔尺寸(标准值) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.0MPa | 1.6 MPa | 2.5 MPa | |||||||||||||
Dt73H/F-(10.16.25) C.P.R.V |
mm | inch | L | L2 | H | H1 | D1 | Z-d | a | D1 | Z-d | a | D1 | Z-d | a |
50 | 2 | 43 | 265 | 330 | 350 | 125 | 4-18 | 90° | 125 | 4-18 | 90° | 125 | 4-18 | 90° | |
65 | 21/2 | 46 | 265 | 362 | 267 | 145 | 4-18 | 90° | 145 | 4-18 | 90° | 145 | 4-18 | 90° | |
80 | 3 | 49 | 320 | 375 | 275 | 160 | 8-18 | 45° | 160 | 8-18 | 45° | 160 | 8-18 | 45° | |
100 | 4 | 56 | 320 | 410 | 295 | 180 | 8-18 | 45° | 180 | 8-18 | 45° | 190 | 8-22 | 45° | |
125 | 5 | 64 | 340 | 425 | 305 | 210 | 8-18 | 45° | 210 | 8-18 | 45° | 220 | 8-26 | 45° | |
150 | 6 | 70 | 390 | 465 | 320 | 240 | 8-22 | 45° | 240 | 8-22 | 45° | 250 | 8-26 | 45° |
